Tomei Technical Trax 1.5-Way LSD - Nissan 180SX 240SX Silvia S13 S14 561516 - VISCOUS

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
TOMEI
RRP: $990.00
$890.99 (You save $99.01)
SKU:
TC101B-NSAX1

 Product Description

TYPE PCD DISC SPRING Size & No. of Ring Gear Bolts No. of Serration Teeth Flange In Dia. Initial Torque Pre Setting (kg.m) Super High Initial Pressure Ring Cam Angle
Ext Dia. No. (In Dia.) No. (Ex Dia.) Thickness No. Ex Teeth No. In Teeth No. Teeth N/A No. Teeth N/A
Strengthening
AXA15 150 106 8
8
1.7 OPT OPT 2 N/A 10-Φ12 29T Φ32.0 16.5~18.5 60°×45

Tomei Technical Trax 1.5-Way LSD - Nissan 180SX 240SX Silvia S13 S14 561516 - VISCOUS

Tomei Technical Trax 1.5-Way LSD - Nissan 180SX 240SX Silvia AXA15

Tomei Technical Trax Advance LSD has been evaluated for its highest performance in the race industry. Tomei Technical Trax offers highest durability, strength, and usability with years of experience in developing limited slip differential. This LSD is packed with 20 advance clutch disks that improves transfer of power to the rear wheels. This LSD is dubbed to be the "super extreme" LSD for serious drivers. This differential is great for the track and drifting. A great alternative to KAAZ differential. This differential will only fit in factory "Viscous" differential equipped pumpkin. Will fit with VLSD equipped Nissan 240SX.
For Nissan Viscous (VLSD) Models
New type advance friction disks for superior transition characteristics
Strengthened differential case

T-TRAX ADVANCE has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch discs and a higher initial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-TRAX ADVANCE offers superior performance in every way.

1.5 WAY
1.5 WAY The differential provides more lock during acceleration and less so during deceleration. During braking, this allows for a more natural feel to the handling.
In order in increase the amount of friction discs possible, the T-Trax models adopted the use of the coil spring disc. This helped with the more compact design and increasing the overall initial torque possible in mechanical LSD. In addition this unique design spring disc shows with continuous severe driving conditions, this has outlasted any previous designs with T-Trax unsurpassed durability.

Previously all car models required the exchange of both the side flanges when upgrading the LSD unit. But with T-TRAX ADVANCE it is now possible to use the original factory side flange. Of course there is no decrease in quality, efficiency or performance but it helps with bring down the costs of upgrading your diff. (with the exception of some models the side flanges still have to be exchanged on certain models). Our aim was to increase performance while trying to give the end user best value for money.

Extreme driving as well as high initial torque puts additional loads and stresses on the LSD case. This can sometimes cause warping, leading to reduced performance. However, this LSD case has been designed to withstand this with ease and prevents this from happening.

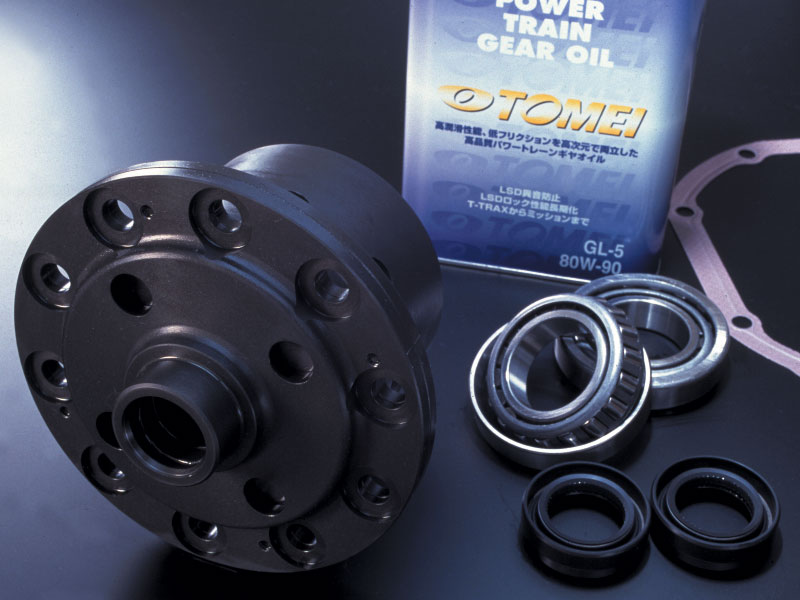

T-TRAX ADVANCE kit comes with everything required for each application. T-TRAX special diff oil, carrier cover gaskets, bearings and oil seals are included which are required when upgrading the diff for the majority of the Nissan line-up.
